What is Capacity Planning? What does one needs to know?

While managing SQL Server, DBA's need to estimate and come up with the sufficient memory required for database instance. There have been many cases where the database server was setup and released to production and upon analysis it was found that the memory available for the server was insufficient and this resulted in poor performance. So, DBA's should plan and carefully estimate the right memory required for SQL Server.

There is a common complaint that SQL Server uses all the memory in the server. How does SQL Server use the memory?

SQL Server is a memory hungry and one shouldn't be scared if it does so!!! SQL Server loads all the data into the memory for all its queries and then the results are returned to client. If we have lot of memory, more data can be placed on the memory and that improves the performance of queries

Does SQL Server ever release the memory to Windows?

Yes. Lazy writer process scans the buffer pool when the SQL Server or Windows operating system is under memory pressure, and releases the unused pages in buffer pool. The least recently used memory pages are released by Lazy writer. If the pages are dirty ( unwritten to disk ), then they are written to disk before being removed from memory.

Is there any guideline for setting the maximum memory?

Ones needs to come up with a formula based on the Windows Server & Edition and SQL Server Version & Edition. A formula which I will be explaining, will help in coming up with maximum memory setting.

Maximum memory setting allocates only for the buffer pool. One needs to estimate the memory required for SQL MGR, memory used by worker and threads, columnstore cache, plan cache and reduce the same from available physical memory to derive the maximum memory setting for SQL Server.

Can you please share the formula used? Has that been documented anywhere by you? Would be useful for many.

Yes. I have blogged the same.  Please refer to my blogpost below where I have written about it in detail http://fard-solutions.com/sql-server-memory-capacity-planning/

Is there a recommended method to set the maximum memory?

Is there a need to size differently for OLTP and OLAP systems? Why ?

OLAP systems involves more of "Select" queries and hence one needs to have bigger buffer pool to cache more data pages. Otherwise, OLAP systems will have lots of disk IO.
OLTP Systems normally comprises of insert statements, random I/Os, smaller transactions and don't have huge select statements. As the types of workloads are different, a slightly different formula for different systems. Some OLTP systems also have huge reports causing massive select statements, but the formula can serve as a general guideline.



Buffer Pool Extension ( BPE ) was introduced in SQL Server 2014. How do you think it helps in "Memory Capacity Planning"?

Buffer Pool Extension is good for companies using old hardware but running on SQL Server 2014, where one is unable to upgrade the memory. Buffer Pool Extension is normally used with SSD disks, but SSD disks response rates are in micro seconds and not nano seconds as it is in usual memory. So, BPE doesn't give a drastic performance gain.

My suggestion is to use it as last resort and ideally one should look to upgrade the RAM. Even if one decides to use BPE, suggestion is to use it with faster disks like PCI RAM disks

Another major technology to release in SQL Server 2014, is "In Memory" OLTP. How does one size if the database uses "In Memory OLTP" tables?

"In Memory OLTP" is one of the good features to have released in 2014 and improved further in SQL Server 2016. However, one needs to carefully size them to achieve the performance gain.

Are there been scenarios where "In Memory OLTP" actually resulted in negative performance?

Yes. If one doesn't size the memory carefully, it can even result in negative performance. Refer to the formula provided below.

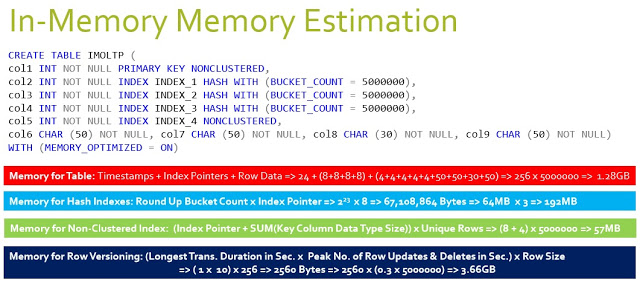

One needs to calculate 4 different areas

1) Table & Row Data - Table data size is the sum of timestamp size, In memory Index Pointers size and actual data size ( row size )

   Begin & End Timestamp - 24 bytes

   In memory index pointers - 8 + 8 + 8 + 8 ( because 8 bytes      per index and there are 4 indexes )

   Data Size - 200 bytes in this example

So the per row table data for this example is 256 bytes.

2) Hash Index - Size of hash index depends upon bucket count. It is as follows

( Bucket Count rounded up to nearest power of  2) *

( Index Pointer ) * ( number of hash indexes )

     In this case - 5,000,000 nearest power of 2 is 2^23. So,            2^23 * 8 * 3

3) Memory for Non Clustered Index -  Derived using indexed column ( key column ) size and number of unique values on the column

 Index Pointer + Sum( Key Column Data Size ) * Unique Rows

4) Memory for Row Versioning - In memory OLTP uses row versioning which implies for every operation, the older rows are copied and changes are applied on the latest version. So, the formula is

       Longest Transaction Duration per Second * Peak rows updated / deleted * Row Size

So, for the above example, for a table that has a maximum 30% of its rows changing at a time, would require 3.6 GB of memory even though the table size is 1.2 GB.

Ideally, In memory OLTP tables are best suited for tables with insert only and fewer changes ( Deletes / Updates ) on it.

SQL Server 2016 SP1 announcement saw quite a few changes to SQL Server features availability across edition. How do you see the changes that are related to memory?

I was shocked(pleasantly) to see the changes. The big change was making columnstore and "In Memory" feature available on Standard and lower editions. The memory used by Columnstore is

capped to 32 GB and is outside of buffer pool.Hence one needs to calculate the memory for column store and then substract the same from physical memory to come up with the maximum memory

required for buffer pool.

"In Memory" OLTP tables have a maximum of 32 GB of memory per database which is also outside buffer pool. One needs to take that into account as well while sizing

the memory.

What are the warning signs if one fails to configure memory correctly or downsizes it?

Internal memory pressure is experienced if insufficient memory is sized. It can be felt via

1) Stolen Pages
2) Plan cache issues
3) Not enough buffer pool memory to keep all the data

Another thing one may want to check is unnecessary or unused "Non Clustered Indexes". As the indexes are updated, they are loaded to memory as well. So, unused indexes not just add up to the disk usage but also waste buffer pool space.

Edit from Nagaraj: Some of the content is debatable as indicated in the comments. Viewers discretion is advised
