Introduction

Most of the times, there are two factors that give us a lot of pain when moving

an SSIS package from one server to another. The first one is the directory structure

and the second is the database connection string.

Assume that you have dozens of SSIS packages which take files from the FTP folder

and process them. The FTP location of your server is c:\inetpub\ftproot\. When

you move these packages to another server, which has FTP folder configured at d:\inetpub\ftproot\localuser,

the SSIS packages will fail. Similarly, you may be connecting to the database on

SERVER1 currently. However, when moving to the new server, you may need to connect to SERVER2\SQL2005 named instance. To fix this, you will have to modify each of

the packages on the new server.

Well, we do not move servers very often, right? I agree. Usually this is not a problem

at all. But if you have dozens of SSIS packages then it will be a tedious job

and you will have to work overnight to fix the issues when you move to a new server.

Most of the times people keep identical copy of the SSIS package on the backup servers

so that if the primary server fails, the backup server can be put online. This requires

that the backup sever has EXACTLY the same copy of the SSIS packages as the primary

server. Every time a package is updated on the primary server, the backup servers

need to be updated too.

Such problems can be handled to a good extend by using SSIS package variables. I

am presenting a simpler solution to the above problem in this article.

Handling the differences in Drive/Folder stricture

If you are some one who entered into programming during the MS-DOS era,

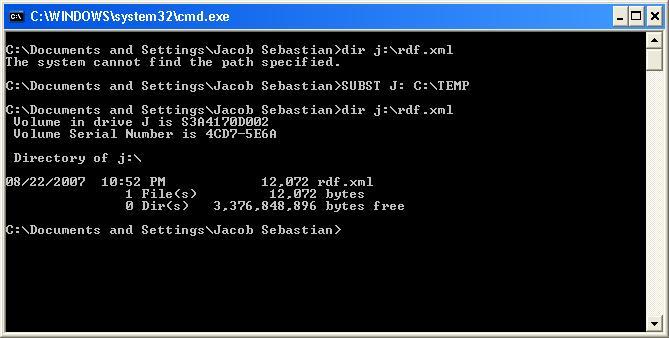

you must be familiar with the cute little command: SUBST. It adds an alias to a disk drive or to a specific folder. Here

is an example.

The first line tries to access drive J. Drive J does not exist on my laptop hence the system throws an error. The next statement maps C:\TEMP to

drive J. Once the mapping is done, I can access the file C:\TEMP\rdf.xml

by referring as J:\rdf.xml.

Using this approach, we can create a virtual drive mapping  for each folder

that our SSIS package needs to access. Assume that the FTP folder on SERVER1 is

located at c:\inetpub\ftproot\mycorporatedomainname and the FTP folder

of SERVER 2 is located at d:\inetpub\ftproot\localuser. We could create

a virtual drive alias on each server which points to the respective folders. Here

is an example:

SERVER 1:

SUBST R: C:\Inetpub\ftproot\domainname

SERVER 2: SUBST R: D:\Inetpub\ftproot\localuser

The above command creates drive R on both the servers. Note that they are pointing

to different locations. Your package does not need to worry about the differences

in the folder structure any more. You can

refer to a fixed drive name. You can copy the SSIS package from SERVER1 to SERVER2

and can run it without the fear of breaking anything due to the differences in the

folder/drive structure.

Handling the differences in Database Server/instance name

Next, let us see how to handle the differences in database server or instance name.

The best way to handle it is by creating a server alias.

To create a server alias, open SQL

Server Configuration Manager and go to SQL Native

Client Configuration.

Right click on Aliases and select New Alias. Here you can provide

an alias name to the database server and enter the connection information.

Once this is done, your SSIS packages can refer to the name VirtualServerForMySSIS

which points to the correct database server. You can create an alias with the same

name on the second server too. Your SSIS package can then refer to the database

server by alias name. This way, we can make sure

that the same version of SSIS package will work on both the servers without any

change.

Once you have a server alias configured, you could use it to connect to the correct

server from the management studio. When you pull down a server and bring another

online, you could simply change the server alias to point to the new server. Your

team members will not shout at you for not informing them about the change, because

the change is absorbed at the server alias level.

Even the application development team need not bother about the server movements,

if they are using the server alias in their app.config or web.config.

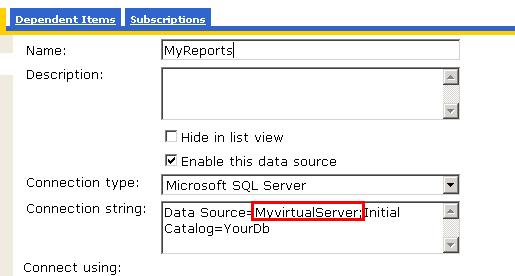

It is a good idea to use the server alias in the report data sources too.

I guess most of you out there are not prone to frequent server changes or switching.

But there are some poor souls like us, who regularly come across cases where we

need to take an application or service offline from one server and put it online

from another server. Drive aliases and Server aliases were found to be very handy

in such cases.

Conclusions

SSIS packages which access files from a pre-defined folder structure tend

to break when the package is moved to a new server. This happens if the new server

has a different drive or folder structure. This article shows a simple solution

to that by using drive mapping. Drive mapping is done by using the DOS SUBST

command.

Some times, when we move an SSIS package to a new location, we might need to change the database connection properties. If you have dozens of SSIS

packages, updating all the connection strings will be a tedious job.  This

can be avoided by creating a server alias from SQL Server Configuration manager.
